Product Description

Features

Silent run.Base plate and saw bow made of cast iron.Stable saw frame, therefore quiet and low-vibration run.Easy to read scale for angle adjustment.As standard with high-quality bi-metal saw band.Saw band tension adjustable on the front side via handwheel.Adjustable material stop for serial work.Quick hold of the workpiece by quick-action vice.Pushbutton Manual saw band switches the blade of the saw blade on and off.Ball bearing saw band guide.Robust substructure.Fully equipped machine; whereby the user can work immediately after commissioning.

Specifications

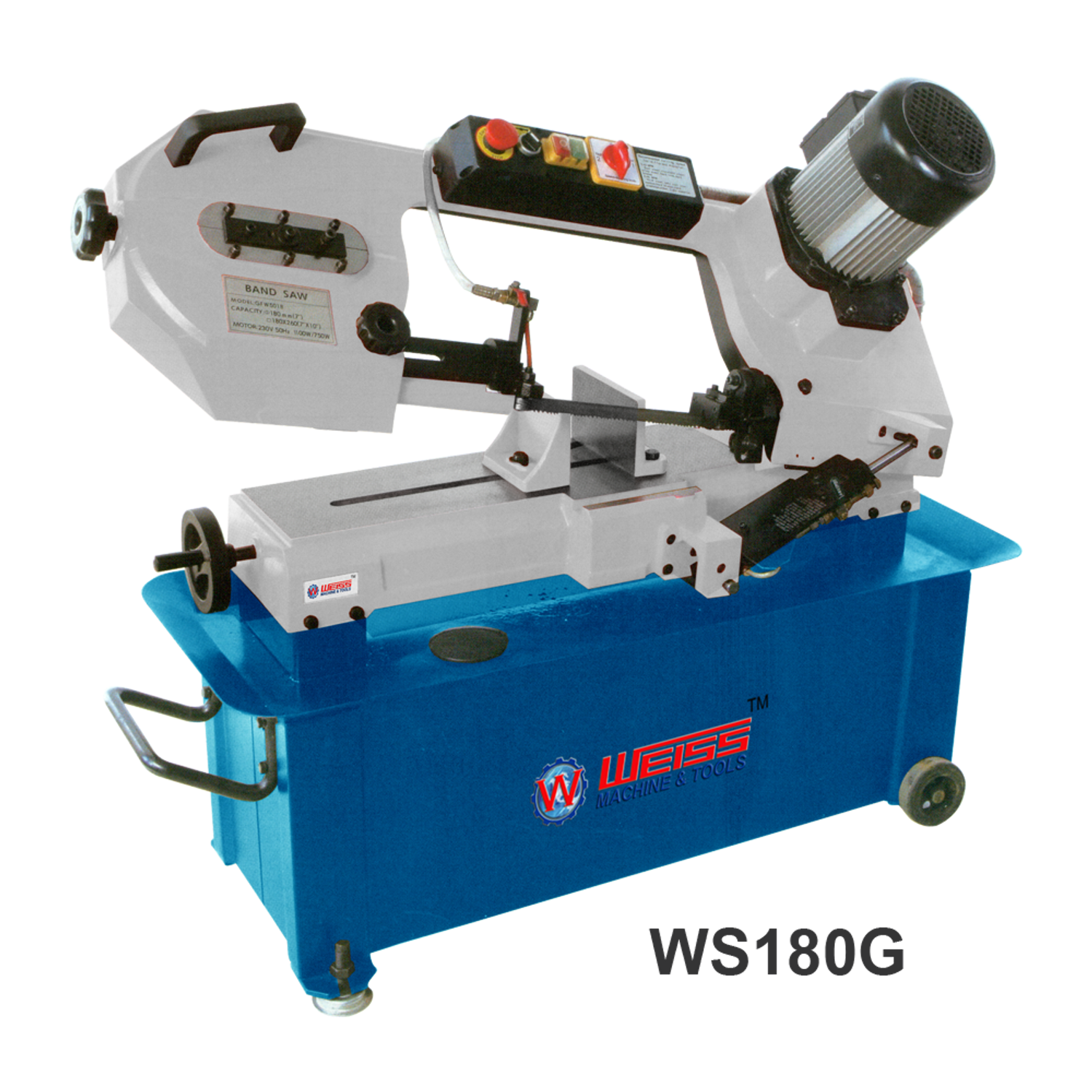

Model No.	WS180G
Item No.	12010180
Specifications：
Motor Power	1.1Kw
Cutting Capacity	Φ180 mm
Cutting Capacity	180 x 260 mm
Blade Speed	43-68 m/min.
No.of Speed	2 kinds
The bow swivel degree	0°- 45°
Blade size	2413 x 19 x 0.9 mm
N.W./G.W.	200/170 kg
Packing size	1310 x 550 x 1160 mm
