Productivity: 10000
Place of Origin: CHINA
Certificate: ISO9001, CE
HS Code: 84581900
| CONTENT | METRIC INFO. | IMPETRIAL INFO. |
| ITEM NO. | 10103295 | |
| Distance between centers | 750mm | 29-17/32" |
| Swing over bed | 280mm | 11-1/32" |
| Swing over cross slide | 170mm | 6-11/16" |
| Width of bed | 180mm | 7-3/32" |
| Taper of spindle bore | MT5/D1-4 | MT5/D1-4 |
| Spindle bore | 38mm | 1-1/2" |
| Number of spindle speeds | Variable | Variable |
| Range of spindle speeds | 100-2000 RPM | 100-2000 RPM |
| Range of longitudinal feeds | 0.07-1.0mm | 0.0028"~0.0394" |
| Range of cross feeds | 0.017-0.25mm | 0.0007"~0.0098" |
| Range of inch threads | 8-56 T.P.I | 8-56 T.P.I |
| Range of metric threads | 0.2-3.5mm | 0.2-3.5mm |
| Top slide travel | 85mm | 3-11/32" |
| Cross slide travel | 170mm | 6-11/16" |
| Tailstock quill travel | 80mm | 3-5/32" |
| Taper of tailstock quill | MT3 | MT3 |
| Motor | 1.5 KW | 1.5 KW |

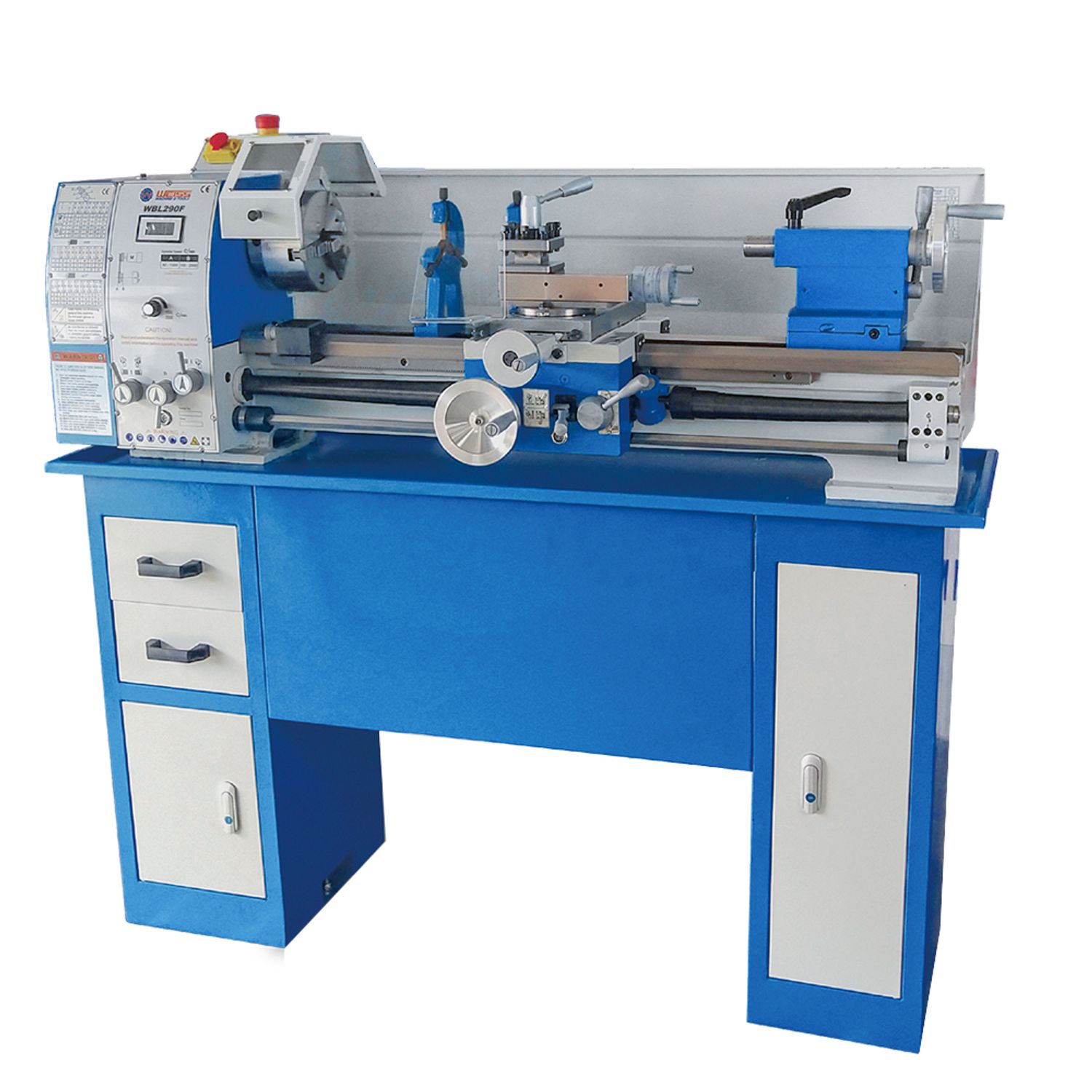

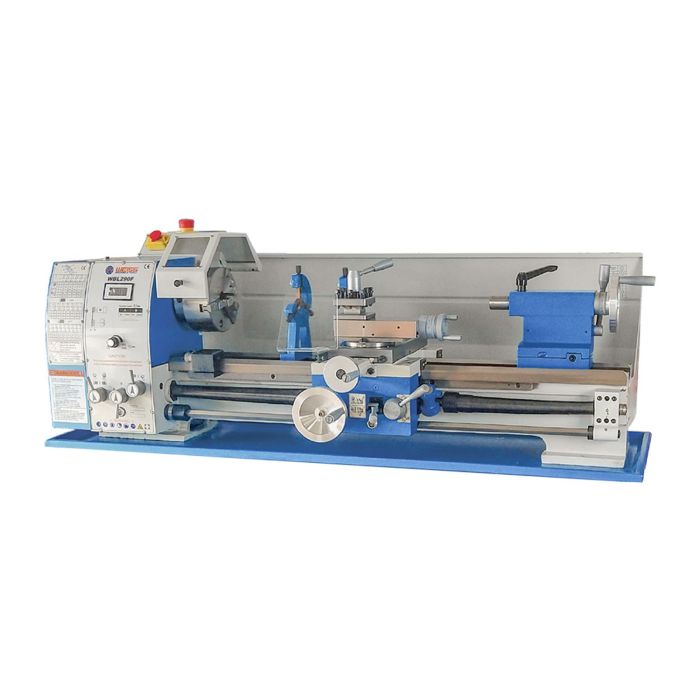

1. The WEISS Lathe WBL290F is a precision metalworking lathe specially designed machine with an outstanding value and able to take on light duty jobs with 290mm swing and 750mm between centers.
2. The primary purpose of WBL290F is to make concentric cuts in metal stock. With this variable speed lathe, round stock can be made perfectly concentric, threaded, drilled, knurled, bored, tapered, etc.

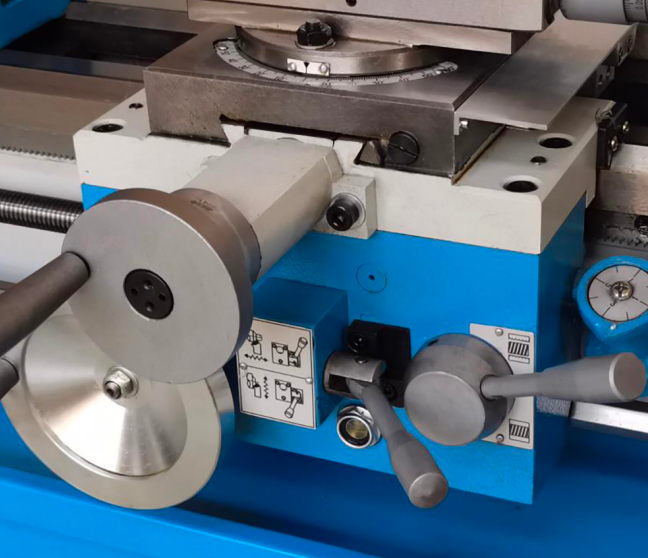

3. The lathe comes equipped with a full featured carriage and apron assemblies that provide super accurate custs and finishes.
4. Precisely manufactured.
5. Powerful, maintenance-free 1.5KW brushless motor.
6. Hardened D1-4 camlock spindle with Ø 38 mm spindle bore.
7. Hardened and ground V-ways bed.
8. Guaranteed concentricity of the spindle nose ≤ 0.01 mm.
9. Concentricity on the lathe chuck ≤ 0.04 mm.

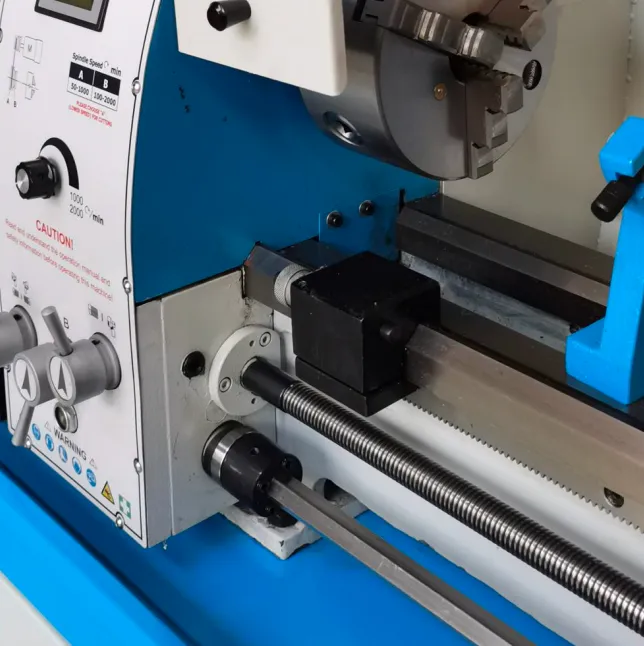

10. Separate lead screw and feed rod with power longitudinal & cross feedss feed.
11. All guides can be adjusted by wedge strips.
12. Right / left rotation in the control panel switchable.
13. Hardened spindle mounted in adjustable precision tapered roller bearings.
14. Tailstock for taper turning ± 5 mm adjustable.
15. Quick, easy and tool-free adjustment of the tailstock by a clamping lever Change gear set in the standard scope of delivery for thread cutting.
▪️Feed rod with clutch system and micrometer carriage stop provide more protection
 |
|
| ▪️Apron can provide power cross & longitudinal feed  |
| STANDARD ACCESSORIES: | INCLUDED |
| 3-Jaw chuck (160mm) | yes |
| High and low variable spindle speed ranges | yes |
| Digital display of speed range | yes |
| Leadscrew and feed rod | yes |
| Power longitudinal&cross feed | yes |
| Micrometer carriage stop | yes |
| Chip tray | yes |
| Splash guard | yes |
| Switch-off chuck cover | yes |
| Toolbox & tools | yes |
| OPTIONAL ACCESSORIES: | Item NO.: |
| Steady rest | 30108001 |
| Follow rest | 30108002 |
| Face plate（240mm) | 30108003 |
| 4-Jaw chuck(160mm) | 22014104 |
| Backplate for 4-Jaw chuck | 30108005 |
| Leadscrew cover | 30108015 |
| Tool post cover | 30108020 |
| Switch-off tool post cover | 30108021 |
| Threading dial(Metric/Inch) | 30108025/30108026 |
| 11pcs 12mm Carbide turning tools | 21000033 |
| 7 pcs 12mm Alloy turning tools | 21020117 |
| 9 pcs 12mm Alloy turning tools | 21020019 |
| Wedge type tool post set 251-111 | 22123021 |
| Euro type tool post set TOOA1 | 22121001 |
| ER32 Collet Fixture ER32-130/160 | 22050109 |
| 2-Axis Magnetic DRO (D80) | 23073247 |
| 2-Axis optical DRO (SINO) | 23080247 |
| Stand | 30108030 |
| Luxury Stand | 30108035 |
