Home> Products> CNC Machines> CNC Lathes> WL500 CNC-FLAT BED HARD WAY CNC LATHE

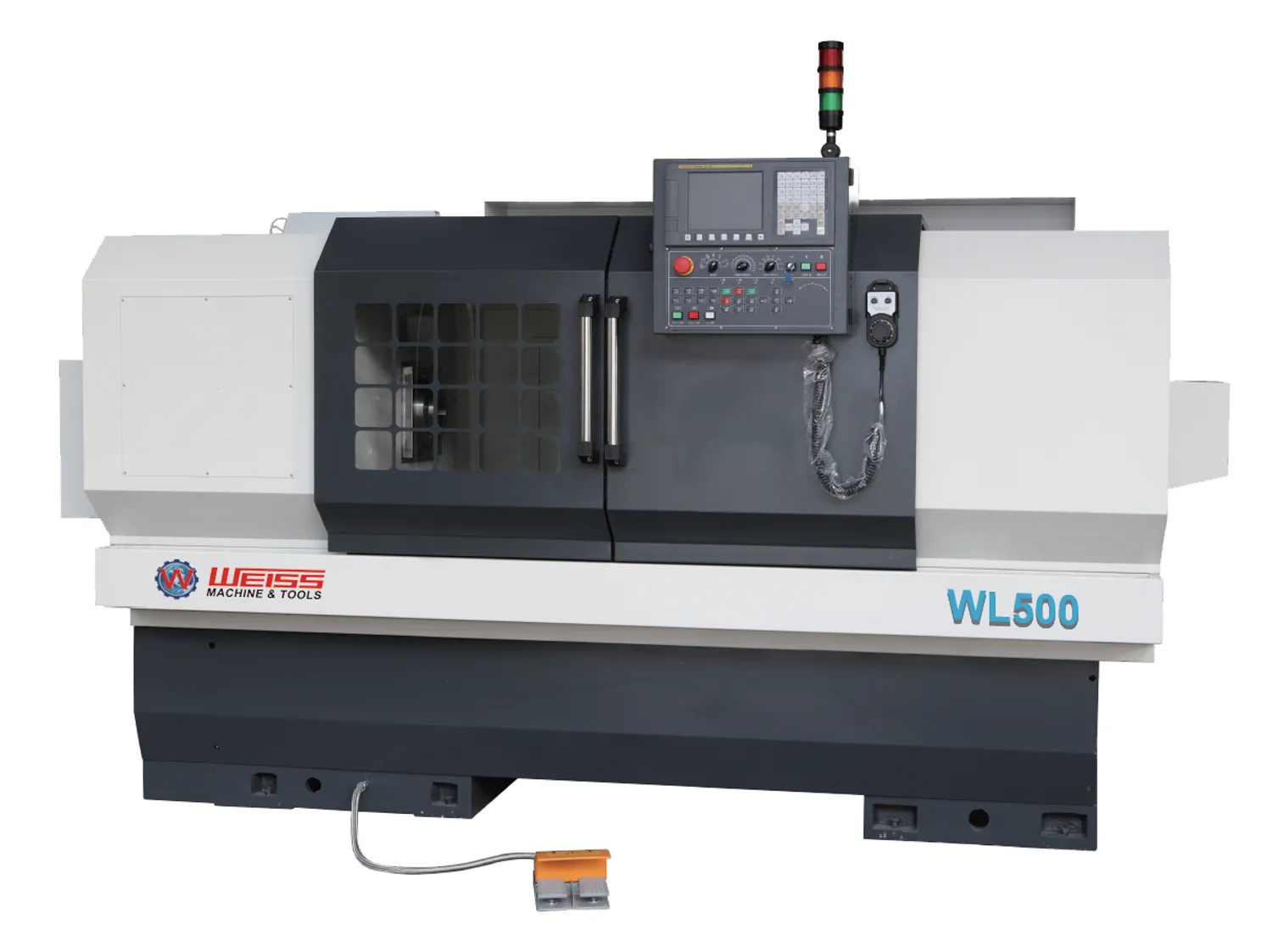

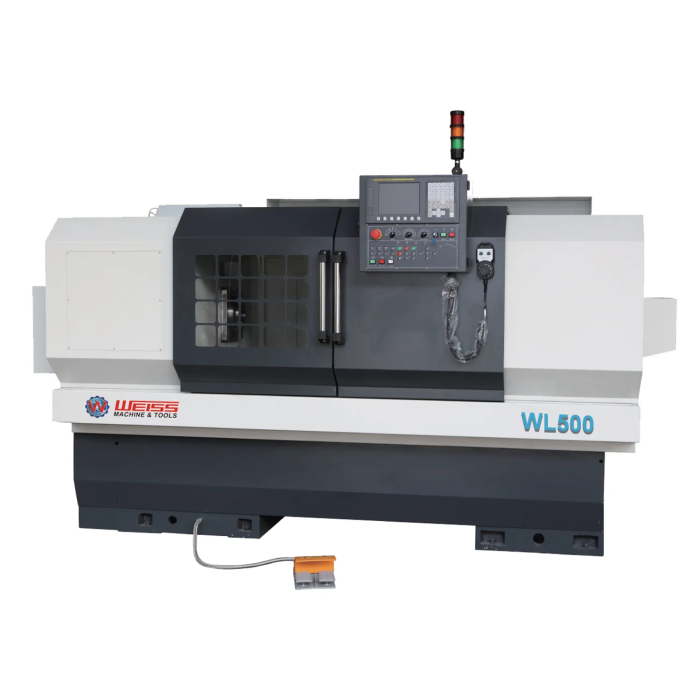

WL500 CNC-FLAT BED HARD WAY CNC LATHE

WL500 CNC-FLAT BED HARD WAY CNC LATHE
  • Min. Order: 1 Bag/Bags
  • Transportation: Others
Price:
Get Latest Price
    Contact Now
    Share:
    MOB:19962018358 Contact Us >
    E- MAIL info@weiss.com.cn
    Product Detail Description
    Product Attributes

    Model No.: WL500 CNC/WL500 CNC （tech-in function）

    Item No: 10120500/10120501/10120502

    Style: 10120500 10120501 10120502

    Customization: Basic configuration Customization for appearance, material, size, etc., please contact us

    Packaging & Delivery
    Selling Units: Bag/Bags
    Supply Ability & Additional Information

    Transportation: Others

    Product Description
    Specifications

    CONTENT METRIC INFO.
    ITEM NO.
    10120500/10120501/10120502
    Specification
    Swing over bed Φ500mm
    Swing over cross slide Φ280mm

    Distance between center

    		 1000mm/1500mm/2000mm
    Spindle nose A2-8
    Spindle bore Φ86mm/105mm(op.)
    Taper of spindle 1:20
    Chuck 10” or 12”(op.)
    Range Of spindle speed manual chuck: 30~1600rpm
    hydraulic chuck: 30~1800rpm
    hydraulic chuck: 150~3000rpm(op.)

    X axis travel

    		 260mm
    Z axis travel 1000mm/1500mm/2000mm
    Turret 4 or 6 or 8 (op.)
    Max. section of tool 25x25mm

    Travel of tailstock sleeve

    		 180mm
    Diameter/taper of tailstock sleeve Φ75mm/MT5
    Main motor power 7.5KW or 11KW(op.)
    X axis feeding power 8NM
    Z axis feeding power 11NM
    Coolant pump power 180W
    Bed width 400mm
    Machine dimension manual chuck 2930X1600X1830mm
    hydraulic chuck 3340X1600X1830mm
    Weight
    3200kgs~3500kgs
