Product Description

Specifications

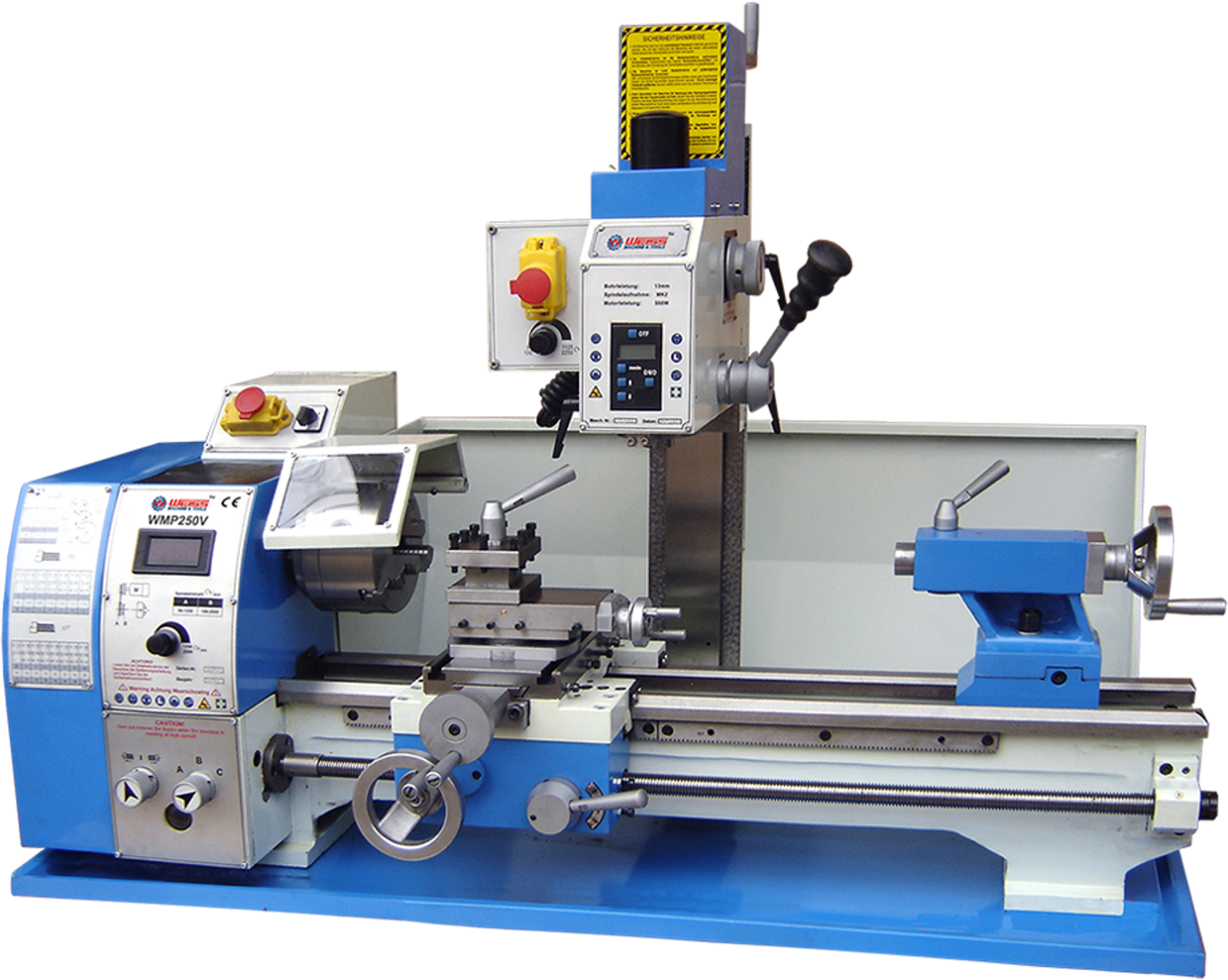

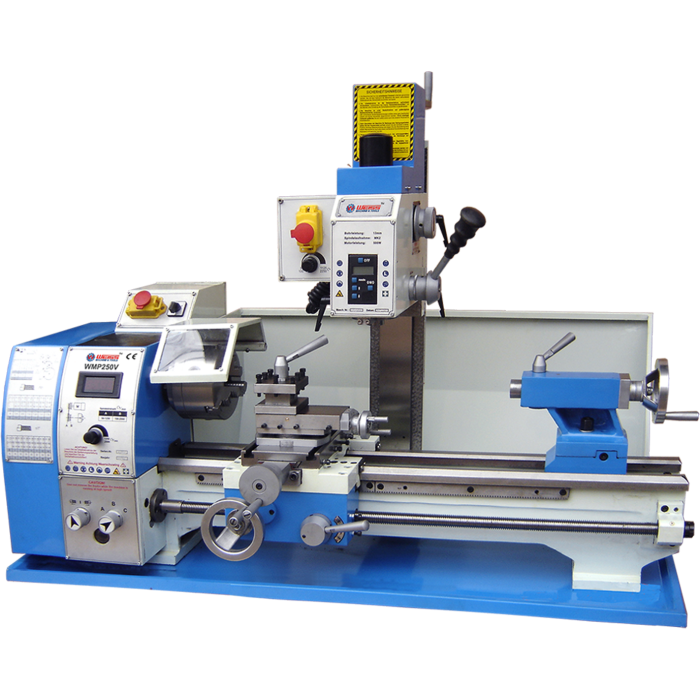

Model No.	WMP250V
ITEM NO.	10110202/10110203
Specifications：	Metric(mm)	Imperial (in)
Lathe
Distance between centers	550/750 mm
Swing over bed	250 mm
Swing over cross slide	145 mm
Width of bed	135 mm
Taper of spindle bore	MT4
Spindle bore	26 mm
Number of spindle speeds	Variable
Range of spindle speeds	50-2000 rpm
Range of longitudinal feeds	0.07-0.20 mm/r
Range of inch threads	8-56 T.P.I
Range of metric threads	0.4-3.5 mm
Top slide travel	50 mm
Cross slide travel	115 mm
Tailstock quill travel	50 mm
Taper of tailstock quill	MT2
Motor	750W
Mill & Drill
Taper of spindle bore	MT2
Spindle stroke	50 mm
Spindle speed	50-2250 rpm
Max. distance spindle to table	280 mm
Max. distance spindle to column	170 mm
Motor	500W
Packing size	1270/1520x670x930 mm
Net weight	180/195 kg

Features&Details

:1. Most popular, widely useful combination machine.
2. V-way bed is hardened and precision ground.
3. Adjustable height head gets greater capacity.
4. MT4 spindlle hole gets greater capacity.
5. Spindle is supported by high precision bearing.
6. T-slotted cross slide.
7. Power longitudinal feed allows threading.
8. Adjustable gibs for slideways.
9. Right and left hand threads cutting is available.
10. Spindle feeding handle with softgrip for perfect operation.
11. Tailstock can be offset for turning tapers.
12. Geared mill head gets more torque.
13. Mill head can be tilted ±90°.
14. Tolerance test certificate, test flow chart included.

Standard Accessories

STANDARD ACCESSORIES:	INCLUDED
3-jaw chuck	yes
Splash guard	yes
Chip tray	yes
Drawbar	yes
Arbor	yes
Depth ruler for mill	yes
Speed DRO for lathe	yes
Toolbox & tools	yes

Optional Accessories

OPTIONAL ACCESSORIES:	Item NO.:
4-jaw chuck
Backplate
Follow rest
Steady rest
Face plate
ER25 collet chuck for lathe
ER25 collet chuck for mill
Turning tools
Stand
