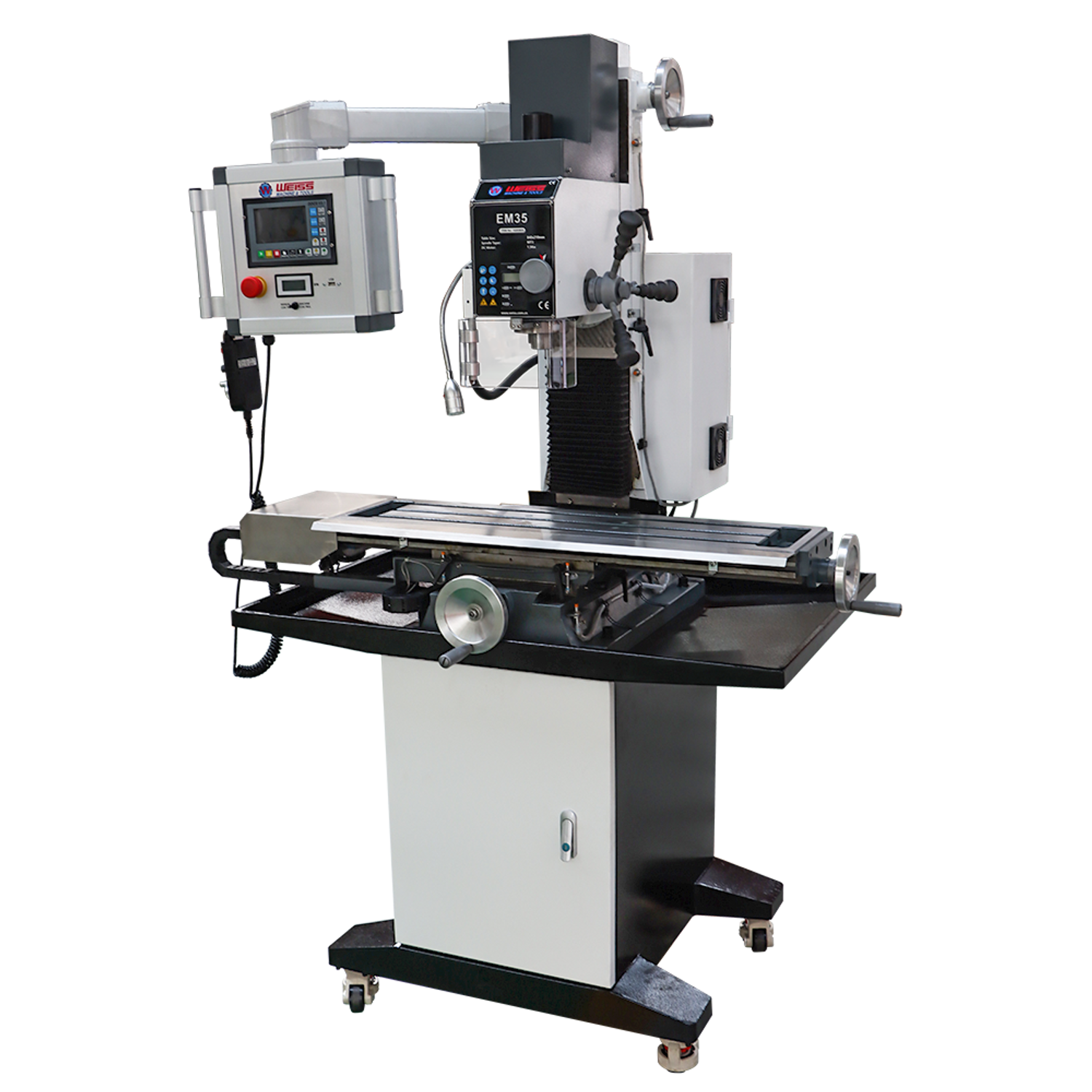

Product Description

Features

·All axes with ball screws
·Servo drive on all axes (X, Y and Z axis)
·Manual central lubrication for all guide ways
·Swivelling control panel
·DDCS V3.1 3/4 axis departure controller
·5 inches inch TFT screen, resolution: 480x272,17 operation keys
·The 17 -key can complete the common off -control operation, and support the FANUC compatibility of the G instruction set with strong universality.
·Support U disk to read G instructions, G instruction file size is not required;
·Support standard MPG;
·Support the single -axis manual movement and continuous operation of the single -axis of the panel;
·The hand wheel and the extension keyboard can control and operate the controller;
·Especially quiet running
·Stable dovetail guide, precision ground and scraped with adjustable wedges
·Manual spindle fine feed
·Drilling and milling head can be swiveled by ± 90°
·Super heavy-duty stand with multi-function wheel, can be adjust height and fix as machine pad(Optional)

Specifications

CONTENT	METRIC（mm）	IMPERIAL (in)
Max. drilling capacity	Φ32mm	Φ1-17/64"
Max. end milling capacity	Φ20mm	Φ25/32"
Max. face milling capacity	Φ76mm	Φ3"
Table size	840x210mm	33-1/16" x 8-1/4"
Cross travel	200mm	7-7/8"
Longitudinal travel	580mm	22-53/64"
Vertical travel	350mm	13-25/32"
Taper of spindle bore	MT3/R8/ISO30	R8/ISO30
Spindle stroke	70mm	2-3⁄4"
T-slot	3x14mm	1/8"x35/64"
Step of spindle speeds	Variable	Variable
Range of spindle speeds	100-2500rpm	100-2500rpm
X-Aixs continuous operation	6 N.m	6 N.m
Y-Aixs continuous operation	8 N.m	8 N.m
Z-Aixs continuous operation	8 N.m	8 N.m
X-Aixs	4000mm/min	157-31/64"/min
Y-Aixs	4000mm/min	157-31/64"/min
Z-Aixs	4000mm/min	157-31/64"/min
Heads tilt left & right	±90º	±90º
Distance from spindle to column	180mm	7-3⁄32"
Distance from spindle nose to table	450mm	17-23/32"
Motor	1500W	1500W
Dimensions	1000x710x1020mm	39-3/8"x27-61/64"x40-5/32"
Packing size:	1050x740x1150mm	41-11/32"x29-9/64"x45-9/32"
Net Weight:	240kg	529lb

Features&Details

Features:

·All axes with ball screws
·Servo drive on all axes (X, Y and Z axis)
·Manual central lubrication for all guide ways
·Swivelling control panel
·DDCS V3.1 3/4 axis departure controller
·5 inches inch TFT screen, resolution: 480x272,17 operation keys
·The 17 -key can complete the common off -control operation, and support the FANUC compatibility of the G instruction set with strong universality.
·Support U disk to read G instructions, G instruction file size is not required;
·Support standard MPG;
·Support the single -axis manual movement and continuous operation of the single -axis of the panel;
·The hand wheel and the extension keyboard can control and operate the controller;
·Especially quiet running
·Stable dovetail guide, precision ground and scraped with adjustable wedges
·Manual spindle fine feed
·Drilling and milling head can be swiveled by ± 90°
·Super heavy-duty stand with multi-function wheel, can be adjust height and fix as machine pad(Optional)

Details：

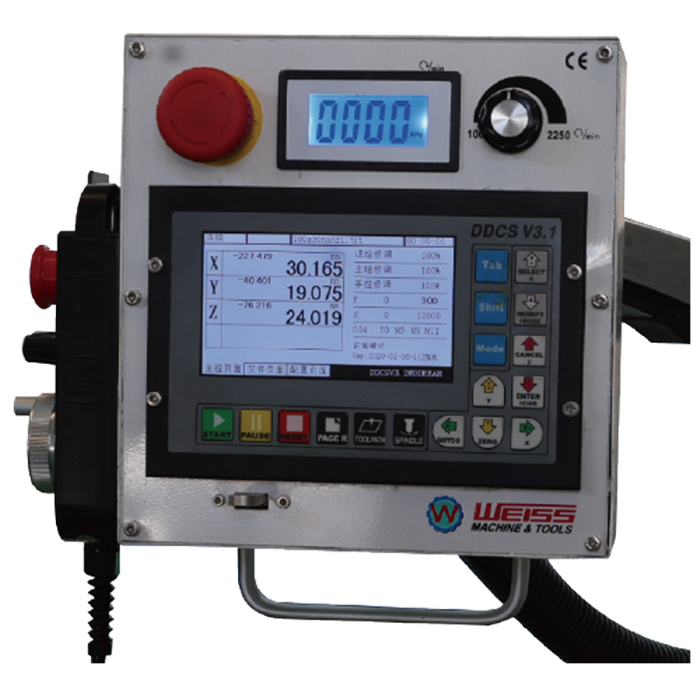

Departure Controller

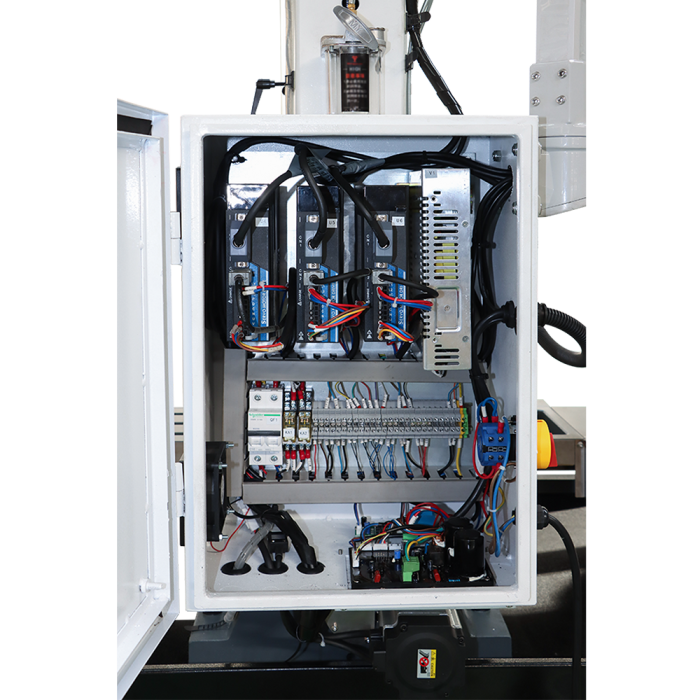

Electric Box

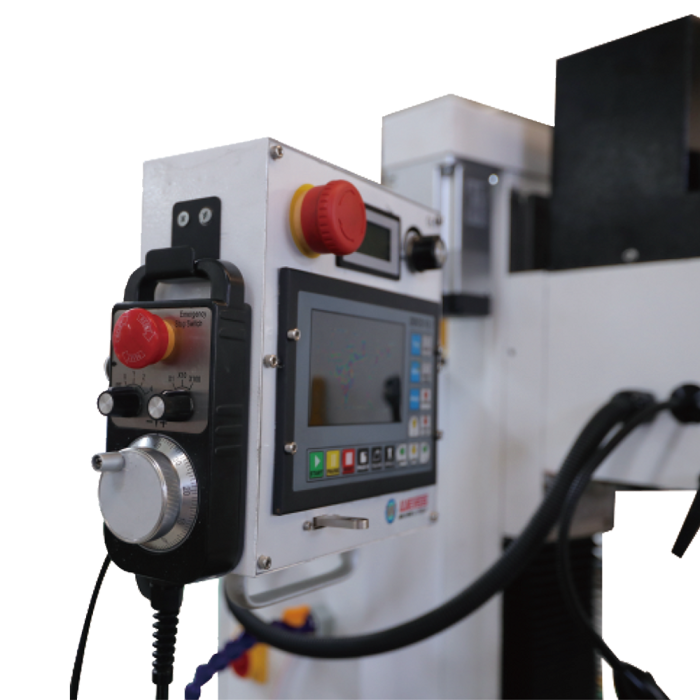

Electronic Handwheel

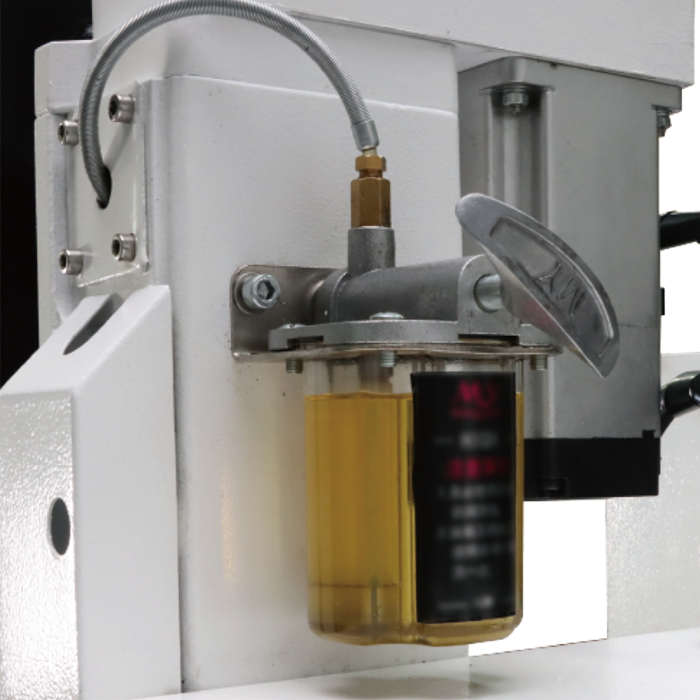

Manual Central Lubrication

Standard Accessories

STANDARD ACCESSORIES:	INCLUDED
DDCS V3.1 3/4 axis departure controller	YES
Swivelling control panel	YES
Electronic handwheel	YES
3 Axis ball screws and servo motor	YES
Drill chuck 1-16mm	YES
Drill chuck arbor	YES
Drawbar	YES
Digital display of speed range	YES
Digital spindle stroke indication	YES
Protect cover for spindle	YES
Manual central lubrication	YES
Tool box & tools	YES

Optional Accessories

OPTIONAL ACCESSORIES:	Item NO.
Keyless drill chuck 3-16mm	30200024
Mill chuck set ER32 MT3 3-25mm 12pc	22030233
Semi-universal dividing head BS-0	22113005
Deluxe clamping kit sets 58pcs 12mm, M10	22038022
2 way precision tilting vise WOA100	22102104
Universal Machine Vise MVB100	22102024
Machine vise BMS150	22101026
