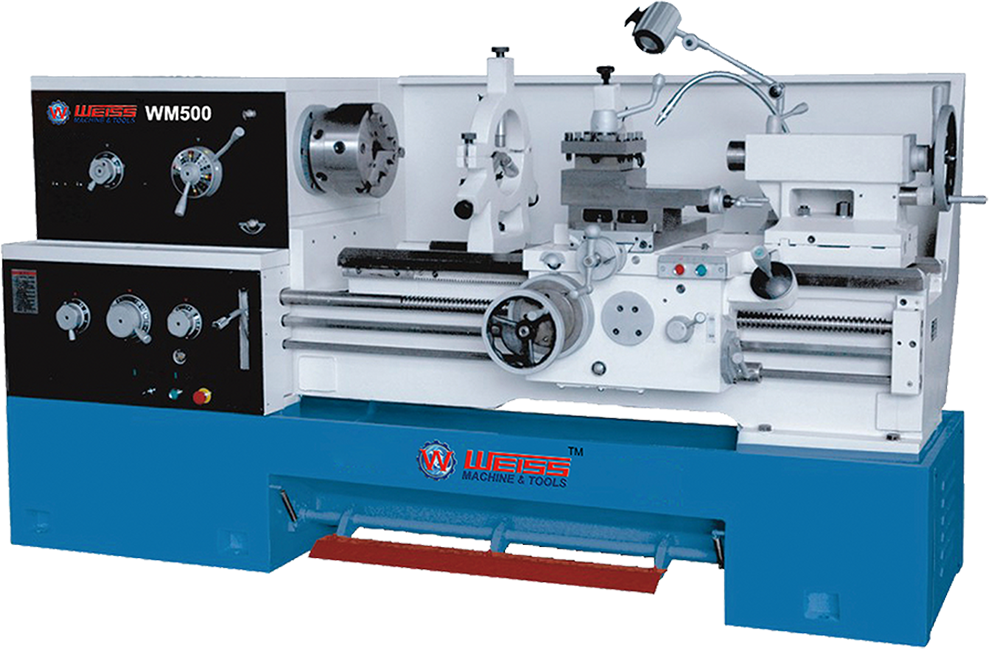

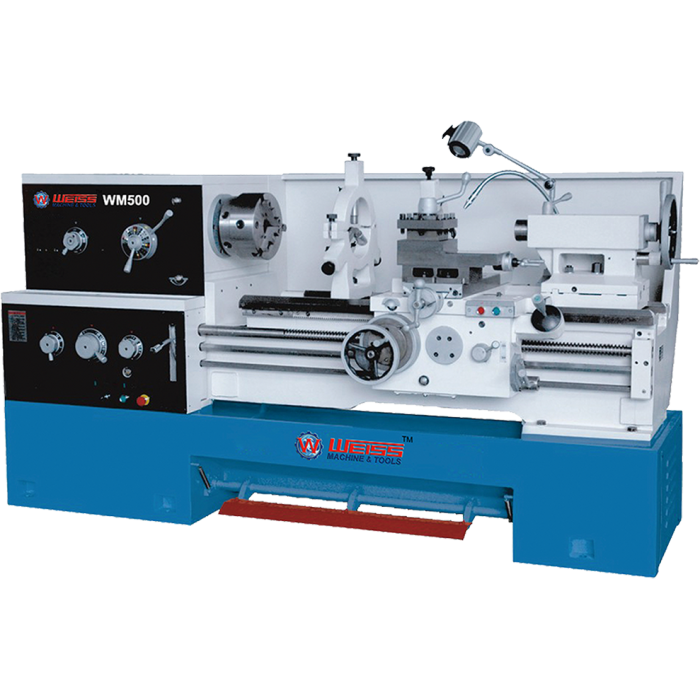

Name: WM500B ENGINE LATHE MACHINE
Brand: Weiss Machinery
Rating: 4.6 (45 reviews)

Packaging & Delivery

Selling Units:	Bag/Bags

Supply Ability & Additional Information

Transportation: Others

Product Description

Specifications

Model No.	WM500Bx1000/1500/2000/3000
ITEM NO.	10107450/10107451/10107452/10107453
Specifications：	Metric(mm)	Imperial (in)
Distance between centers	1000/1500/2000/3000 mm	39-3/8"/ 59-1/16"/78-47/64"/118-7/64"
Swing over bed	500 mm	19-11/16"
Swing over gap	720 mm	28-11/32"
Swing over carriage	310 mm	12-13/64"
Width of bed	405 mm	15-15/16
Taper of spindle bore	MT7	MT7
Step of spindle speeds	24	24
Spindle bore	80 mm	3-5/32"
Range of spindle speeds	9-1600 rpm	9-1600 rpm
Range of cross feeds	0.027-2.73mm/r	0.0011"-0.1074"/r
Range of longitudinal feeds	0.063-6.43mm/r	0.0025"-0.2531"/r
Range of inch threads	28-1/8 T.P.I 46kinds	28-1/8 T.P.I 46kinds
Range of metric threads	1-224 mm 46kinds	1-224 mm 46kinds
Range of diametrical pitches	56-1/4 D.P 42kinds	56-1/4 D.P 42kinds
Range of module pitches	0.5-112 mm 42kinds	0.5-112 mm 42kinds
Rapid feed of cross traverse	1.9 m/min	74-51/64"/min
Rapid feed of longitudinal traverse	4.5 m/min	177-11/64"/min
Top slide travel	145 mm	5-45/64"
Cross slide travel	340 mm	13-25/64"
Max.size of tool(WxH)	25X25 mm	63/64" x 63/64"
Tailstock quill travel	150 mm	52-9/32"
Tailstock quill diameter	75 mm	2-61/64"
Taper of tailstock quill	MT5	MT5
Motor	7.5KW	7.5KW
G.W.	3400/3650/3900/4250Kg	7495lb/8046lb/8598lb/9369lb
N.W.	2900/3150/3400/3750Kg	6393lb/6944lb/7495lb/8267lb
Packing size	(2500/3000/3500/4500)x1150x1650mm	(98-27/64"/118-7/64"/137-51/64"/177-11/64")x45-9/32"x64-61/64"

Features&Details

FEATURES:

1. Hardened and ground bed way and gears in head-stock are with long life and low noise .
2. Spindle system is of high rigidity and precision.
3. Rapid feed structure is available on Apron.
4. Headstock adopts clutch structure.
