| ★ A Special order for the joist and channel moulds needed | ||||||||

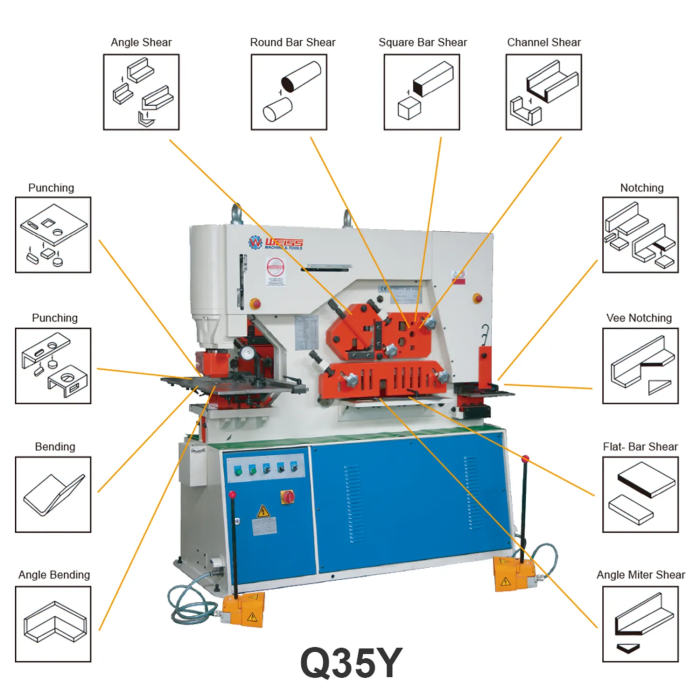

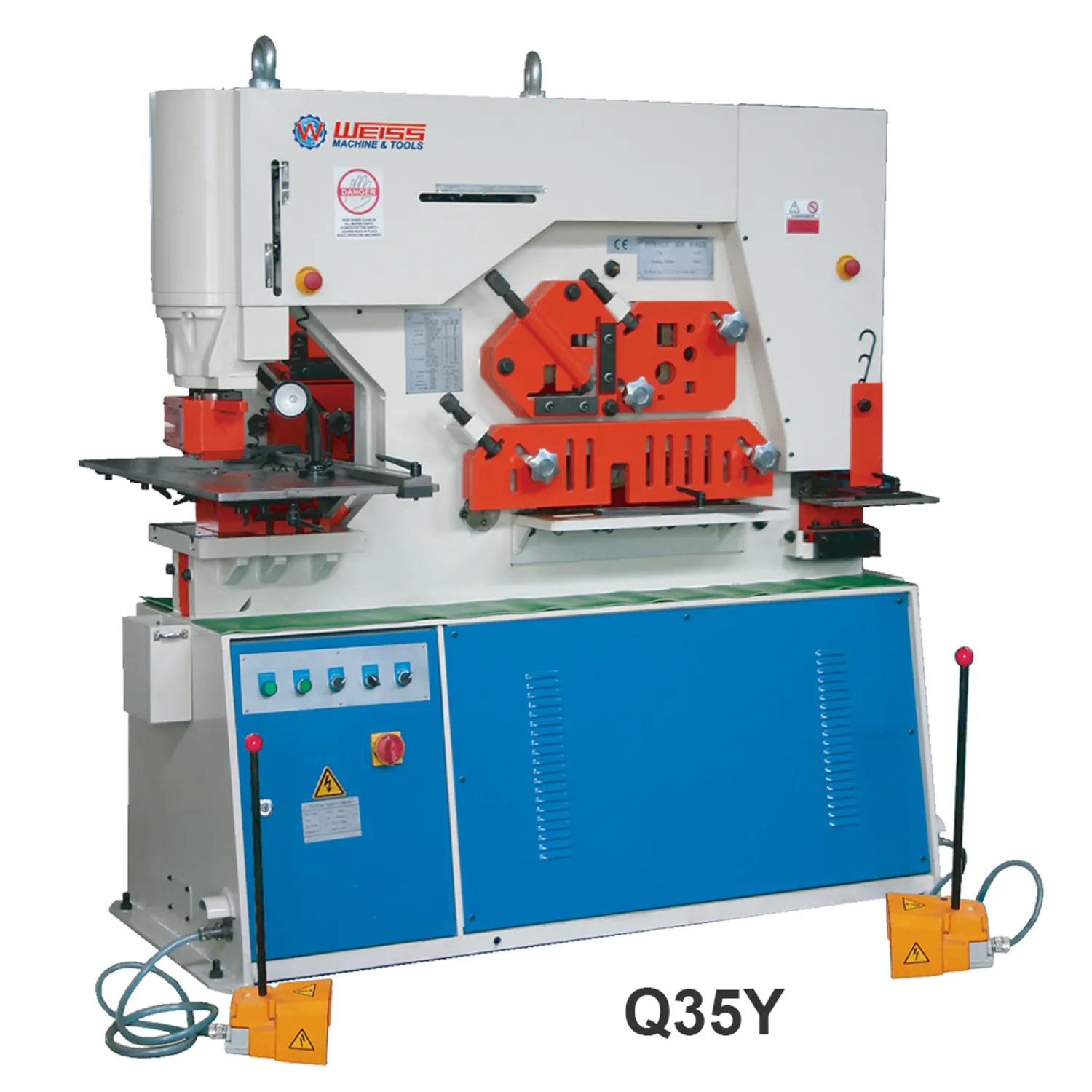

| Profile | Round Bar | Square Bar | Equal Angle | T-Bar | Joist | Channet | ||
| 90° Shearing | 45° Shearing | 90° Shearing | 45° Shearing | |||||
| Section View | ||||||||
| Q35Y-12H | 30 | 30x30 | 100x100x10 | 70x70x6 | 100x100x10 | 40x40x5 | 80x45x5 | 80x45x5 |
| Q35Y-12H | 40 | 35x35 | 120x120x12 | 60x60x6 | 120x120x12 | 50x50x5 | 100x50x5 | 100x50x5 |
| Q35Y-12H | 45 | 40x40 | 125x125x12 | 50x50x5 | 125x125x12 | 60x60x8 | 126x74x5 | 126x53x5.5 |
| Q35Y-12H | 50 | 50x50 | 140x140x12 | 50x50x5 | 140x140x12 | 70x70x10 | 160x86x6 | 160x60x6.5 |
| Q35Y-12H | 60 | 50x50 | 160x160x14 | 60x60x6 | 160x160x14 | 80x80x10 | 200x102x9 | 210x75x9 |
| Q35Y-12H | 65 | 55x55 | 180x180x16 | 60x60x6 | 180x180x16 | 80x80x10 | 280x124x10.5 | 280x86x11.5 |
| Q35Y-12H | 70 | 60x60 | 200x200x18 | 80x80x10 | 180x180x16 | 80x80x10 | 180x180x10.5 | 300x89x11.5 |
| Q35Y-12H | 80 | 65x65 | 200x200x20 | 120x120x10 | 200x200x18 | 100x100x10 | 320x130x10 | 320x92x12 |
| Model No. | Q35Y-12 | Q35Y-15 | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 | Q35Y-40 | Q35Y-50 |
| Item No. | 11180012 | 11180015 | 11180016 | 11180020 | 11180025 | 11180030 | 11180040 | 11180050 |
| Specifications： | ||||||||
| Pressure(Ton) | 45 | 55 | 60 | 90 | 120 | 160 | 200 | 250 |
| Max.cutting thickness(mm) | 12 | 15 | 16 | 20 | 25 | 30 | 40 | 50 |
| Plate strength(N/mm2) | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 |
| Cutting angle(degree) | 7° | 7° | 7° | 8° | 8° | 8° | 8° | 8° |
| Sheraing size of one stroke(mm) | 12x250 | 15x300 | 16x250 | 20x330 | 25x330 | 30x355 | 35x400 | 40x400 |
| 8x400 | 10x480 | 16x600 | 20x600 | 25x70 0 | 30x750 | |||
| Ram stroke(mm) | 60 | 60 | 80 | 80 | 80 | 80 | 100 | 100 |
| Number of strokes(cpm) | 8 | 8 | 8 | 8 | 6 | 6 | 8-25 | 8 |
| Throat dupth(mm) | 200 | 200 | 300 | 355 | 400 | 600 | 600 | 600 |
| Punching thickness(mm) | 12 | 15 | 16 | 20 | 25 | 26 | 35 | 40 |
| Max. Punching diameter(mm) | 22 | 24 | 25 | 30 | 35 | 38 | 41 | 40 |
| Power of main motor(kw) | 3 | 4 | 4 | 5.5 | 7.5 | 11 | 15 | 18 |
| Overall dimensions LxWxH(mm) | 1200x5200 x1500 | 1320x590 x1620 | 1640x730 x1770 | 1860x800 x1900 | 2355x960 x2090 | 2680x1040 x2300 | 2850x1300 x2400 | 3000x1440 x2450 |
| Weight of machine(kg) | 1000 | 1400 | 1600 | 2500 | 4500 | 6800 | 9200 | 11000 |
| Standard accessories: |
| ● 1pc Punch and 1 pc Die. ● Quick Change Punch Device ● Large Working Table 500 x500 mm ● 1000mm Electrical Back Gauge ● Φ51mm "U" Type Circle ● Bending Die 300 x65 x65mm for Q35Y-16/20 ● Bending Die 500 x95 x95mm for Q35Y-25/32 |
| Optional accessories: |
| ● Atos Pump and Valve ● Round Punch and Die ● Channel Shear and Joist Shear ● Reducing Sleeve ● Conveyor Table ● Super Big working table (500x1000mm) ● Φ20mm, Φ32mm, Φ60mm "U" Type Circle ● Oval or Square Punch and Die ● Oil Filter ● Adjustable Worktable ● Table with Linear Guide |
