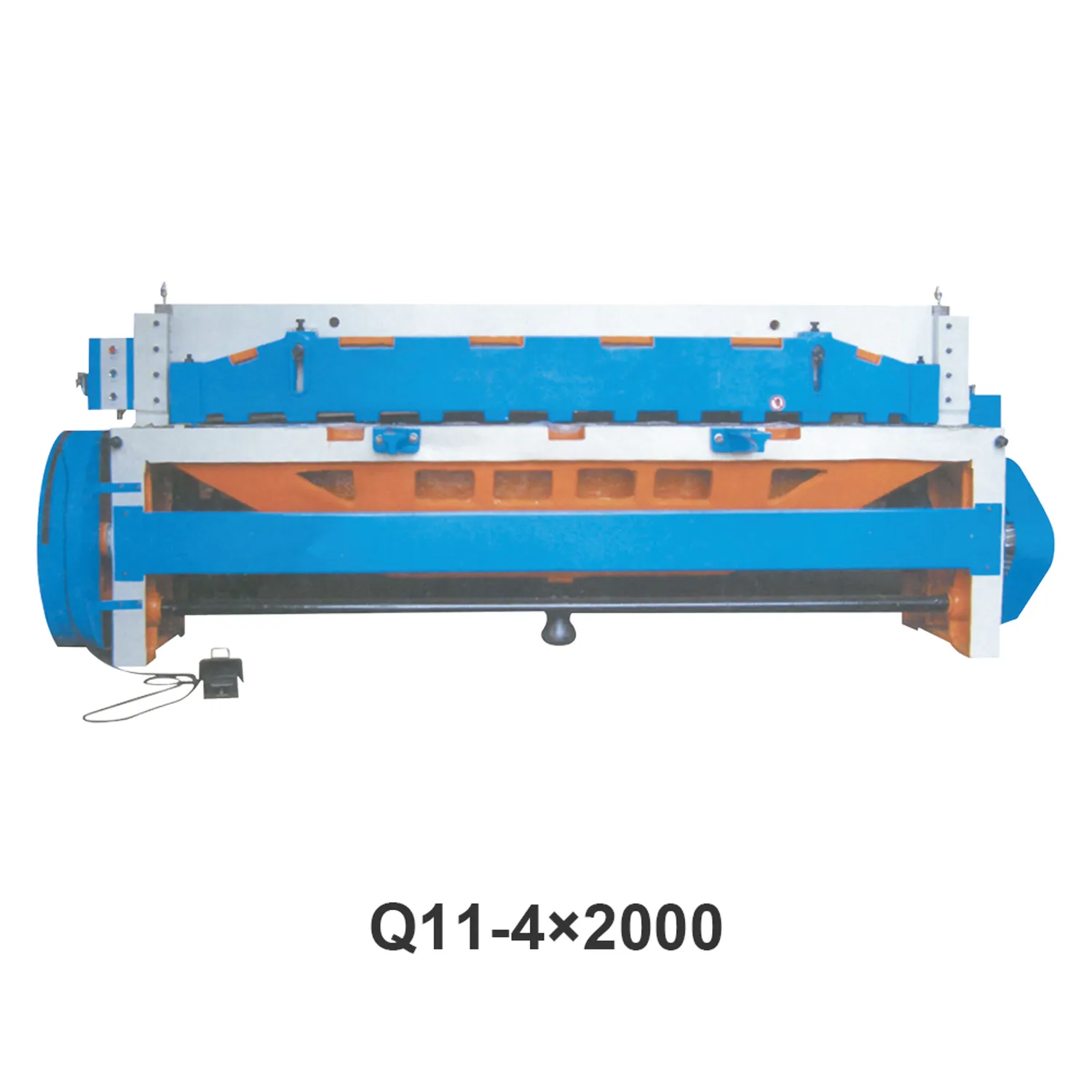

Model No.: Q11-3x1300/Q11-3x1500/Q11-4x2000/Q11-2x2500/Q11-2x3200
Item No: 11120313/11120315/11120420/11120225/11120232
Customization: Basic configuration Customization for appearance, material, size, etc., please contact us
| Selling Units: | Bag/Bags |
|---|
| Model No. | Q11-3x1300 | Q11-3x1500 | Q11-4x2000 | Q11-2x2500 | Q11-2x3200 |
| Item No. | 11120313 | 11120315 | 11120420 | 11120225 | 11120232 |
| Specifications： | |||||
| Max. Shearing thickness (mm) | 3 | 3 | 4 | 4 | 4 |
| Max. sheering width (mm) | 1500 | 1500 | 2000 | 2500 | 3200 |
| Shearing angle | 3° | 3° | 2° | 2° | 1.3° |
| No. of strcke (per minute) | 20 | 20 | 20 | 20 | 20 |
| Motor power (KW) | 3 | 3 | 5.5 | 5.5 | 7.5 |
| Back gauge (mm) | 350 | 350 | 500 | 500 | 600 |
| Packing size(cm) | 233x136x154 | 240x130x144 | 318x151x149 | 370x151x149 | 520x210x185 |
| N.W / G.W. (kg) | 1300/1450 | 1500/1650 | 3000/3200 | 3600/3850 | 6800/7100 |
| Features : |
|
