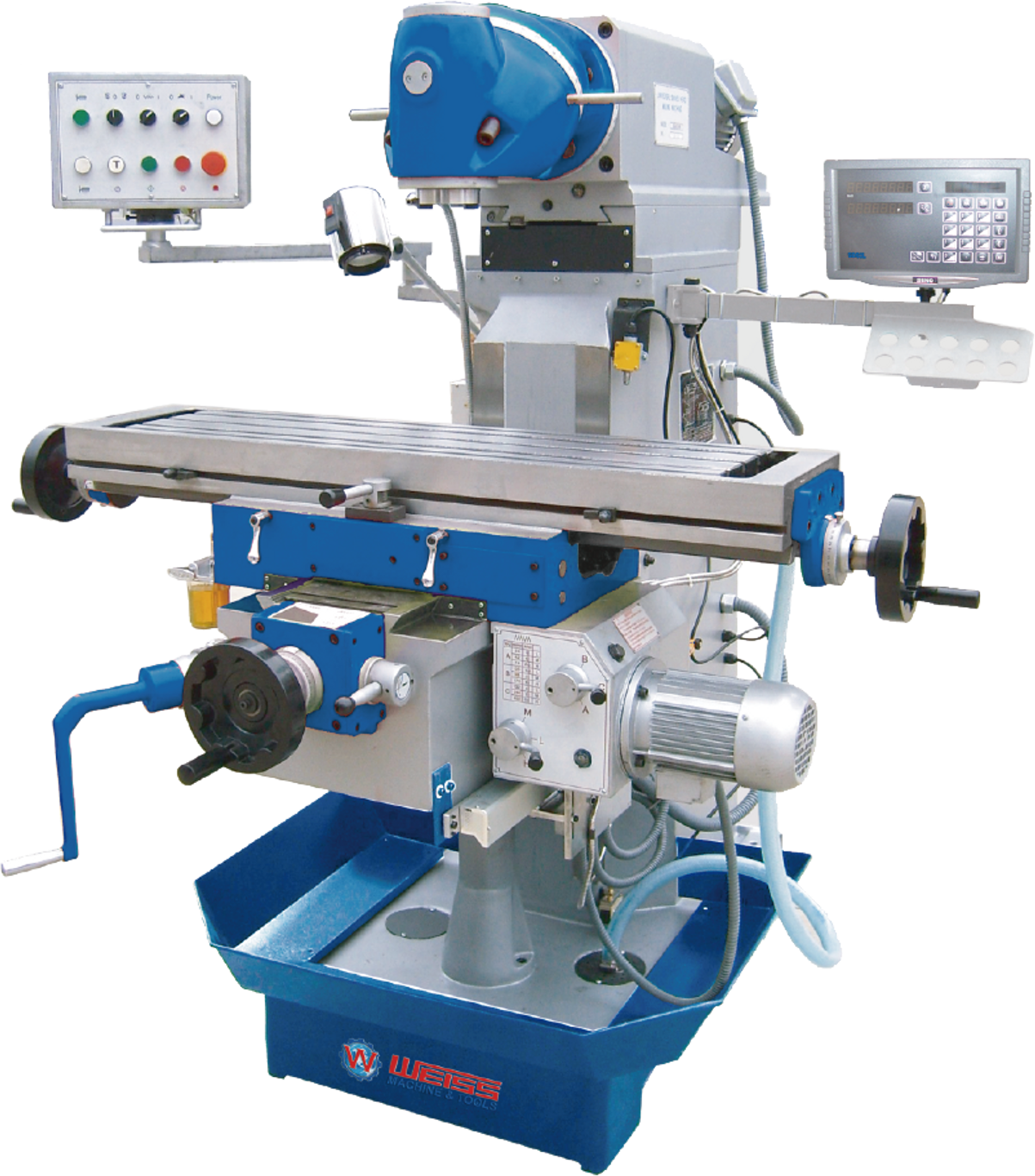

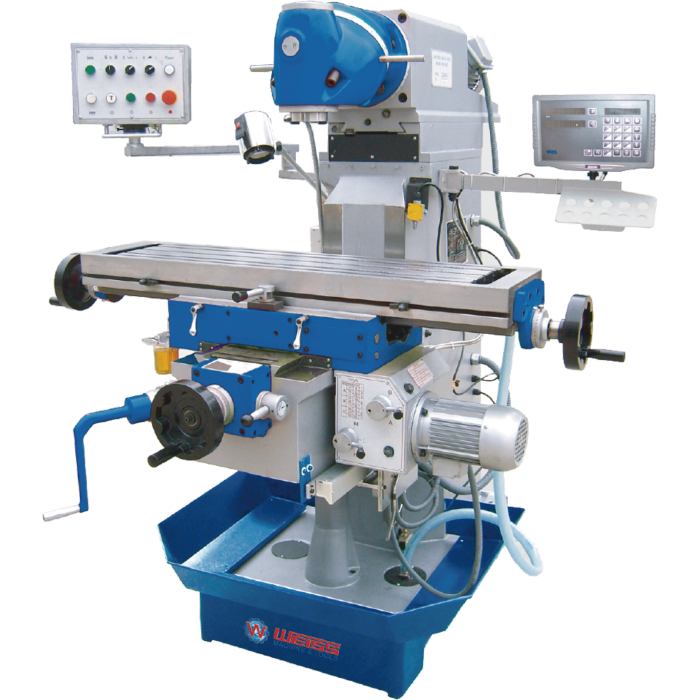

Model No.: WUM100
Customization: Support for Customization
| Selling Units: | Bag/Bags |
|---|
Transportation: Others
| Model No. | WUM100 | |
| Item No. | 10208103 | |
| Specifications： | Metric(mm) | Imperial (in) |
| Table size | 1120 x 260 mm | |
| Table travel (X,Y) | 600 x 260 mm | |
| Knee travel | 400 mm | |
| Table power feed speed range (X) | 24~402 mm/rain | |
| Table power feed speed range (Y) | 24~402 mm/rain | |
| Knee rapid speed | 400 mm/min | |
| T-slot | 3x14x63mm | |
| Distance spindle nose to table | 100~480 mm | |
| Distance spindle axis to column | 60~500 mm | |
| Max end milling width | 125 mm | |
| Max vertical milling diameter | 25 mm | |
| Spindle taper | ISO40 | |
| Steps of spindle speeds | 11 | |
| Range of spindle speeds | 45 ~ 1660 rpm | |
| Spindle meter | 2.2 kw | |
| Head swivel (L&R) | 360° | |
| Packing size | 1655 x 1500 x 1730 mm | |
| Net weight | 1480 kg | |
